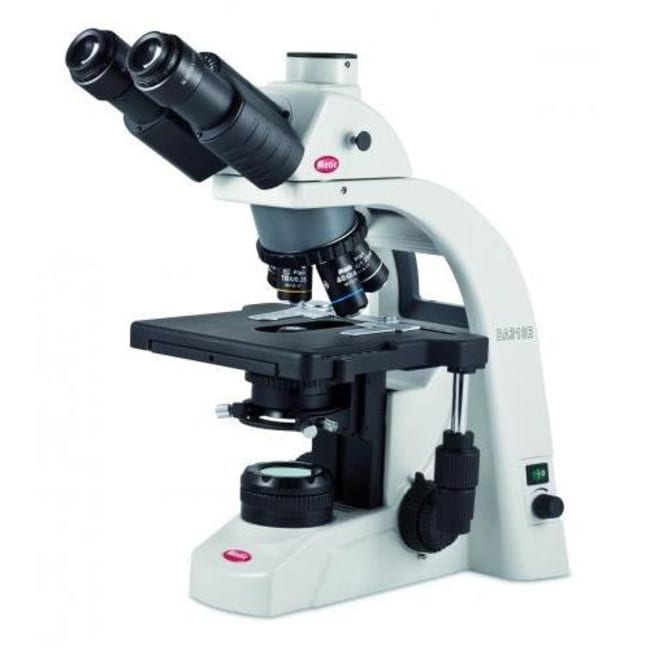

Motic™ BA310E Trinocular Microscope
Full Koehler configuration provides maximum illumination quality for even the most demanding samples. Motic™ BA310E Trinocular Microscope can be enhanced with additional contrast methods like Phase contrast, Polarization and Dark field and discussion/teaching devices to ensure that this model will offer long term functionality to all user levels.
Brand: Motic™ 1100100402443
9700.29 DKK valid until 2024-12-15
Use promo code "21658" to get your promotional price.
This item is not returnable.
View return policy
Description
- 30° inclined Trinocular head with 360° Swiveling eyepiece tubes for comfortable viewing while seated
- Interpupillary distance adjustment from 48 to 75mm
- Widefield eyepieces N-WF10X/20mm with diopter adjustment on both eyepieces
- Reversed quintuple nosepiece with click stops for precise magnification changes
- CCIS™ EC Plan 4X, 10X, 20X (optional), 40X, 60X (optional) and 100X-Oil
- Coaxial coarse and fine focusing system with 2 micron minimum increment with tension adjustment
- Vertical travel range 25mm
- Large 180 X 170mm rackless stage with low-position coaxial controls
- Travel range 80 X 55mm
- Focusable and centrable Abbe condenser N.A. 0.90/1.25 with iris diaphragm and slider slot
- Collector lens assembly with screw-on filter holder
- Built-in transmitted 6V/30W Halogen Koehler illumination or 3W LED Koehler illumination (6000K and 4500K)
Specifications
| 45mm blue filter, immersion oil (5ml), power cord, Allen hexagonal key, thumb screw, vinyl dust cover | |
| CCIS Plan Achromatic | |
| reversed quintuple | |
| 100/240 V (CE) | |
| 2 years electrical / 5 years optical & mechanical parts | |
| BA310E | |
| Halogen | |
| N-WF 10X/20 mm |
| 40X, 100X, 400X, 1000X | |
| 20 mm | |
| 400 x 220 x 400 mm | |
| Focusable Abbe condenser N.A. 0.90/1.25 with iris diaphragm and slot | |
| Upright microscope | |
| Seidentopf Binocular, 30° inclined, 360° rotating, 360° swiveling | |
| Biological microscope | |
| 1 Each |
