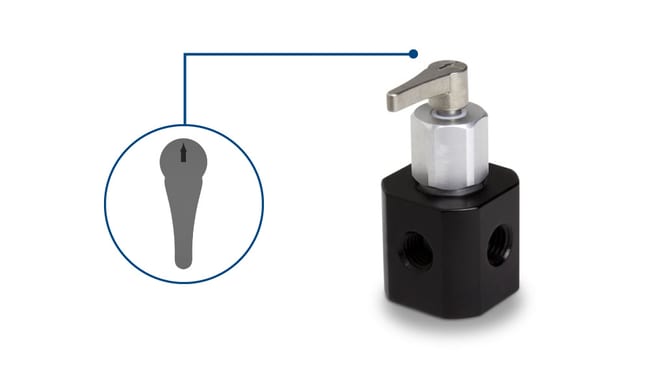

Hamilton™ HVD4-5 VALVE
Hamilton (HV) Plug Valves provide an economical and flexible method of custom-building a fluid flow control system, from a simple on/off valve to a more complex multi-valve arrangement, using a combination of loop and distribution valves.
Brand: Hamilton™ 86738
This item is not returnable.
View return policy
Description
Specification Sheet
- Valve Model – 4-5

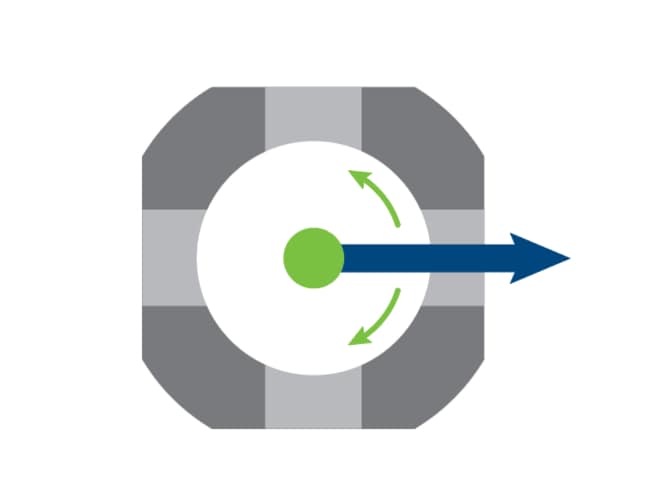

- Valve Model Description – Distribution Flow Path 4-ports
- Fluid Path – PTFE/CTFE
- Valve Size – HV
- Nominal Port Diameter – 0.059 inch (1.5 mm)
- Valve Outer Body Dimension – 0.75 inch (19.1 mm)
- Housing Material – Aluminum
- Total Dead Volume – 16.8 μL
- Actuated – Manual
- Break Away Torque – 15 oz-in (105.9 mNm)
- Panel Mounting – No
- Operating Temp High – 38 °C (100 °F)
- Operating Temp Low – -12 °C (10 °F)
- Operating Pressure – 0 to 100 psig (0 to 6.9 bar)
- Storage Temp High – 38 °C (100 °F)
- Storage Temp Low – -18 °C (0 °F)
Specifications
| Manual | |
| Distribution Flow Path 4 Ports |
